BorexStroke:?18 x 14.6mm
Max.Power Rating:?Up to 6.5hp
Working Pressure:?124Bar/1800psi
Max.Flow Rate:?17Lpm/4.49Gpm
Max.Input Rpm:?1560r/min
Head Material:?Brass forged
Overall Dimension:?43x41x26cm
Shipping Weight:?12.4kgs

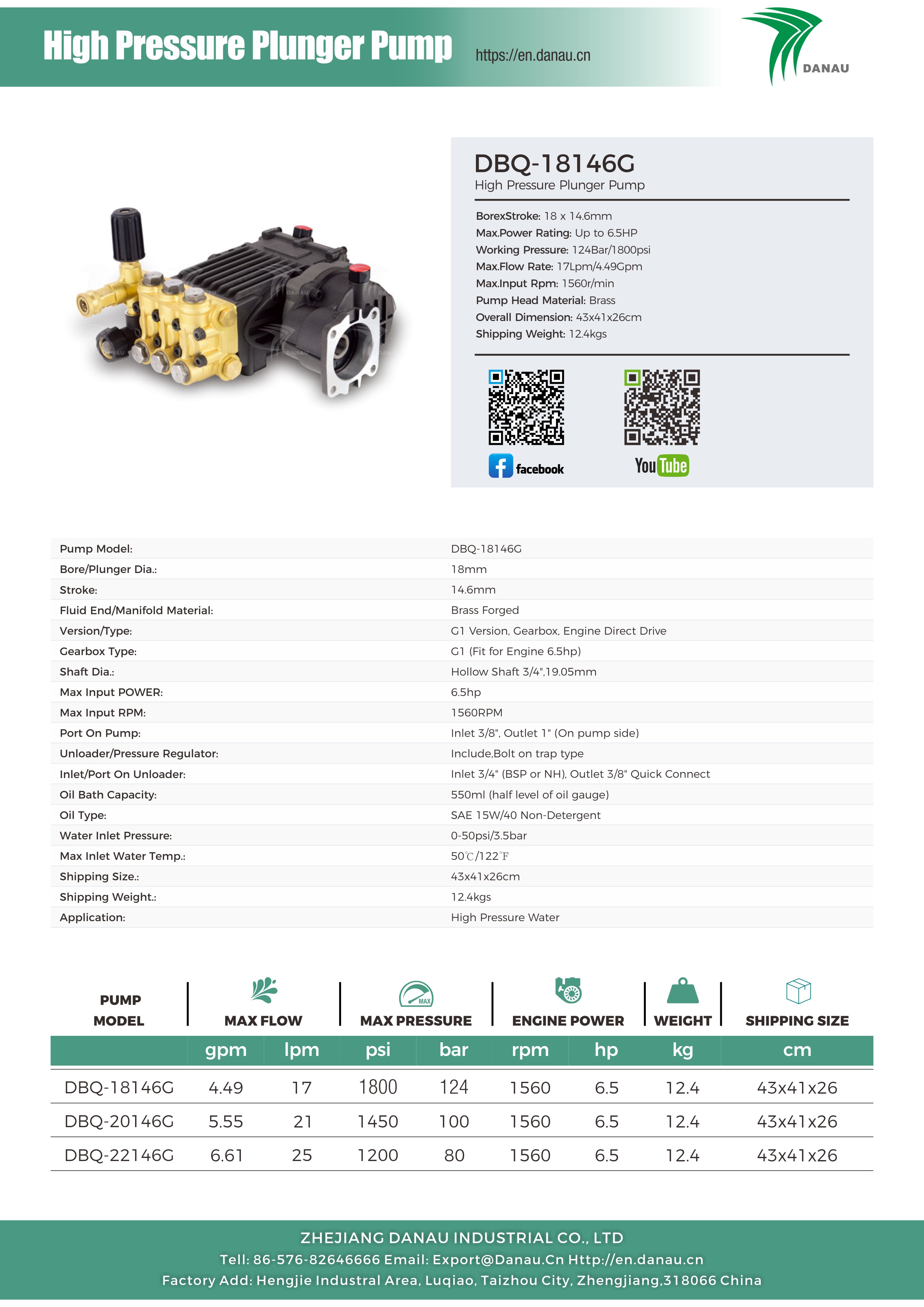

| Pump Model: | DBQ-18146G | |
| Bore/Plunger Dia.: | 18mm | |
| Stroke: | 14.6mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | G1 Version, Gearbox, Engine Direct Drive | |
| Flange Type: | G1 (Fit for Engine 6.5hp) | |
| Shaft Dia.: | Hollow Shaft 3/4",19.05mm | |
| Max Input POWER: | 6.5hp | |
| Max Input RPM: | 1560RPM | |
| Port On Pump: | Inlet 3/8", Outlet 1" (On pump side) | |
| Unloader/Pressure Regulator: | Include,Bolt on trap type | |
| Inlet/Port On Unloader: | Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 43x41x26cm | |
| Shipping Weight.: | 12.4kgs | |
| Application: | High Pressure Water | |
