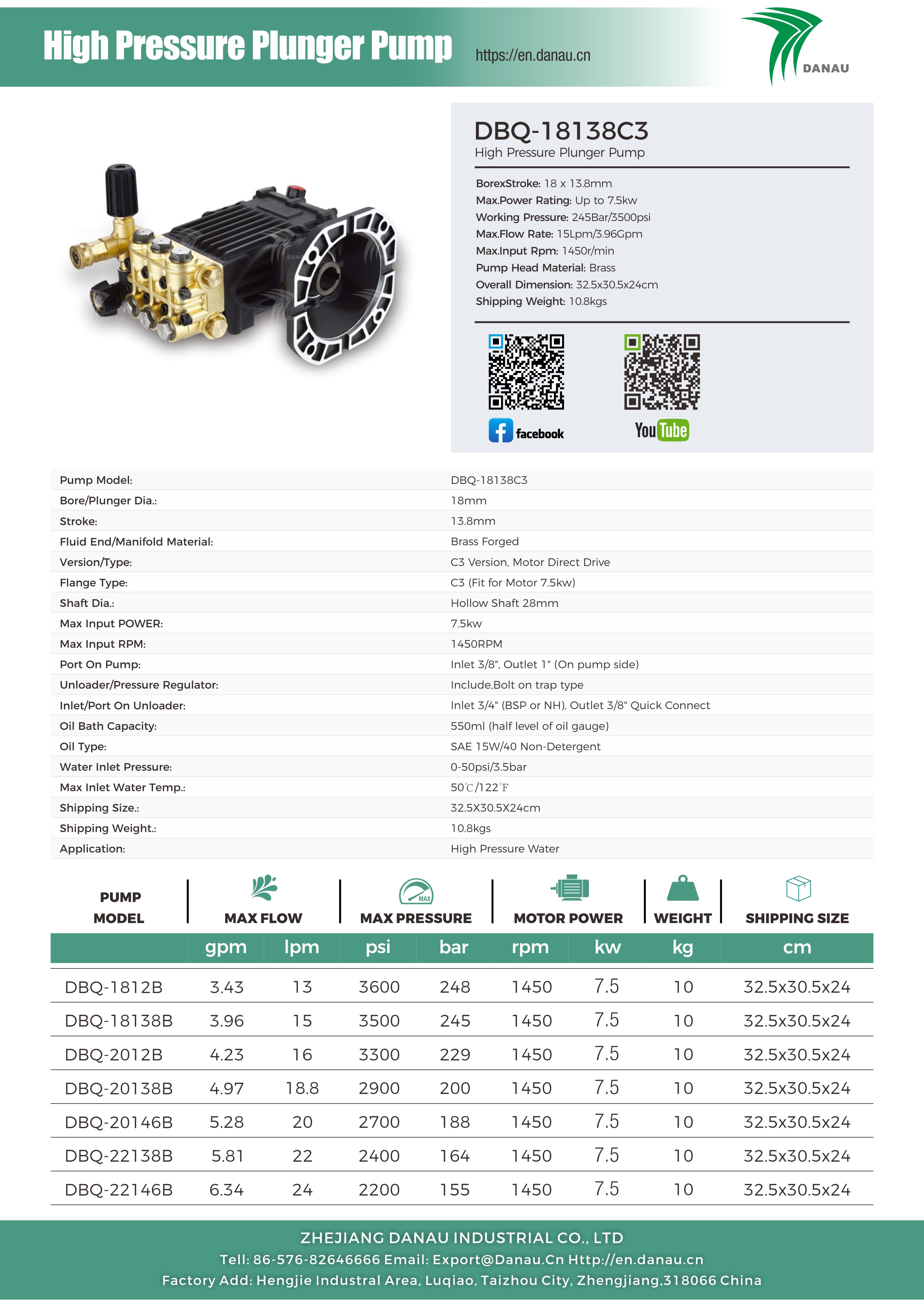

BorexStroke:?18 x 13.8mm
Max.Power Rating:?Up to 7.5kw
Working Pressure:?245Bar/3500psi
Max.Flow Rate:?15Lpm/3.96Gpm
Max.Input Rpm:?1450r/min
Head Material:?Brass forged
Overall Dimension:?32.5x30.5x24cm
Shipping Weight:?10.8kgs
| Pump Model: | DBQ-18138C3 | |
| Bore/Plunger Dia.: | 18mm | |
| Stroke: | 13.8mm | |
| Fluid End/Manifold Material: | Brass Forged |
|
| Version/Type: | C3 Version, Motor Direct Drive | |
| Flange Type: | C3 (Fit for Motor 7.5kw) | |
| Shaft Dia.: | Solid Male Shaft 28mm | |
| Max Input POWER: | 7.5kw | |
| Max Input RPM: | 1450RPM | |
| Port On Pump: | Inlet 3/8", Outlet 1" (On pump side) | |
| Unloader/Pressure Regulator: | Include,Bolt on trap type | |
| Inlet/Port On Unloader: | Inlet 3/4" (BSP or NH), Outlet 3/8" Quick Connect | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 32.5X30.5X24cm | |
| Shipping Weight.: | 10.8kgs | |
| Application: | High Pressure Water | |
