BorexStroke:?36 x 50mm
Max.Power Rating:?Up to 52HP
Working Pressure:?160Bar/2320psi
Max.Flow Rate:?153Lpm/40.4Gpm
Max.Input Rpm:?1000r/min
Head Material:?Forged stainless steel 420
Overall Dimension:?58x40x28cm
Shipping Weight:?74kgs

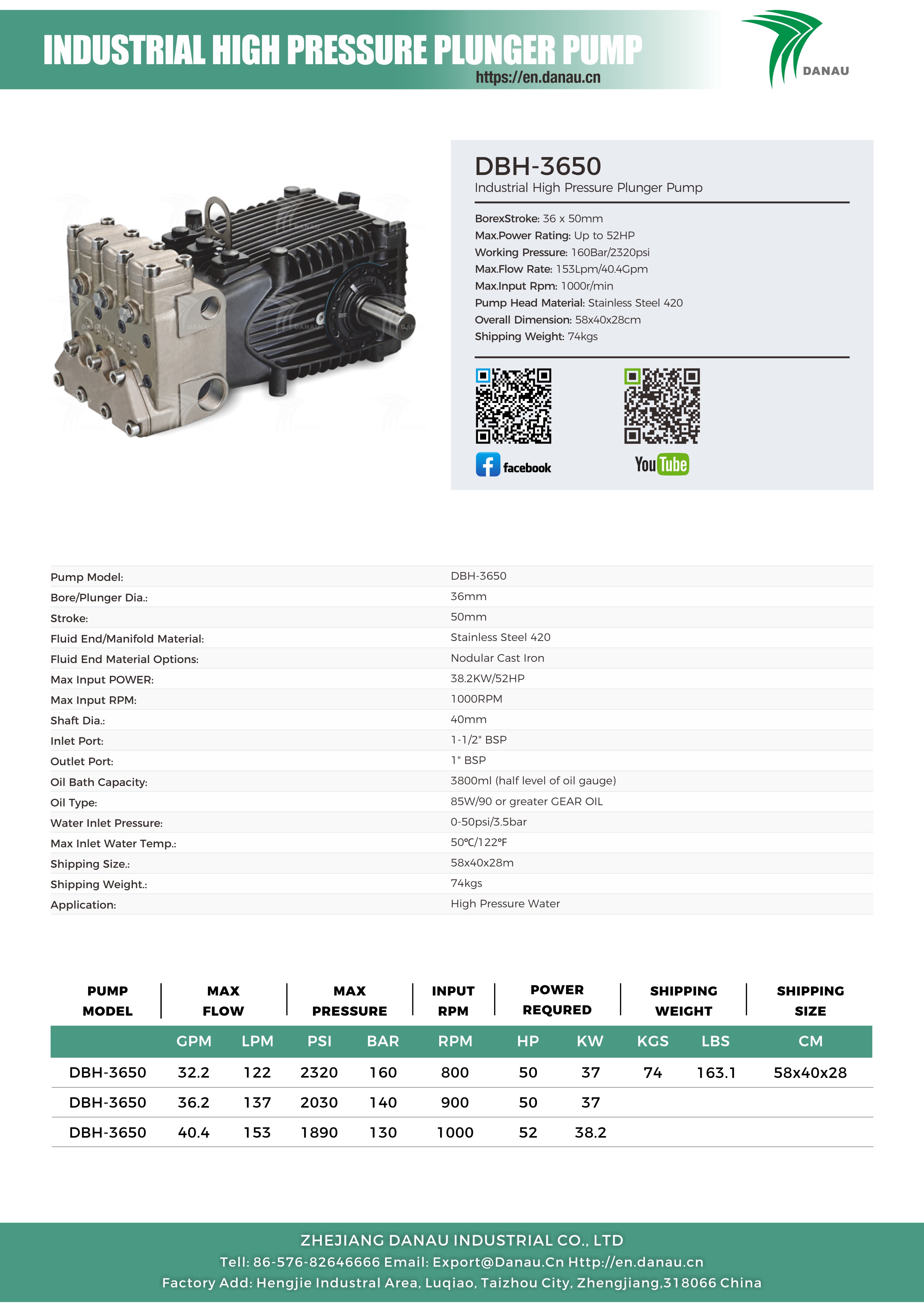

| Pump Model: | DBH-3650 | |
| Bore/Plunger Dia.: | 36mm | |
| Stroke: | 50mm | |
| Fluid End/Manifold Material: | Forged Stainless steel 420 | |
| Fluid End Material Options: | Nodular cast iron,Stainless steel 316L, Duplex 2205 | |
| Max Input POWER: | 38.2KW/52HP | |
| Max Input RPM: | 1000RPM | |
| Shaft Dia.: | 40mm | |
| Inlet Port: | 1-1/2" BSP | |
| Outlet Port: | 1" BSP | |
| Oil Bath Capacity: | 3800ml (half level of oil gauge) | |
| Oil Type: | 85W/90 or greater GEAR OIL | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 58x40x28m | |
| Shipping Weight.: | 74kgs | |
| Application: | High Pressure Water | |
